Infrared Vein Finder Technology: How It Works and Its Role in Difficult Venipuncture

An infrared vein finder viewer emits near-infrared light into dermal tissue, where deoxygenated hemoglobin inside sub-surface blood vessels absorbs light while surrounding structures reflect it. This optical mechanism projects a visual map directly onto skin. The projection vein finder eliminates blind palpation during difficult venipuncture procedures. You can immediately identify a hidden vein that touch alone misses. In complex hospital care, 59.3% of patients experience difficult venous access challenges. Utilizing an infrared vein viewer replaces guesswork with clear real-time mapping. You locate suitable vessel paths instantly to improve first-stick success. This non-invasive visual guide elevates patient safety during every routine phlebotomy procedure.

Source: BMJ Open, Difficult intravenous access (DIVA) in the adult population: an umbrella review; PubMed, Vascular access care in patients with multimorbidity.

Key Takeaways

• Infrared vein finders project a visual map of blood vessels directly onto the skin surface.
• These optical devices boost first-attempt needle success and significantly reduce average procedure times.
• Safe near-infrared light works on various skin tones and detects veins up to ten millimeters deep.
• Visual guides protect patients from painful misplaced needles and lower unnecessary medical complications.

How Infrared Vein Finder Viewer Devices Detect Vessels

Light Absorption and Hemoglobin Mechanics

An infrared vein finder viewer detects subcutaneous blood vessels through targeted light absorption. When you hold a portable hand-held device over the skin, it illuminates underlying tissue using light in the 700 to 900 nm spectrum. Human tissue remains transparent across these near-infrared wavelengths, allowing photons to penetrate 10 to 15 mm into subcutaneous layers. Deoxygenated hemoglobin inside red blood cells absorbs near-infrared light at peak rates near 758 nm and 929 nm. Surrounding subcutaneous structures reflect these light waves back toward the visual sensor, creating measurable absorption differences. Different human tissues exhibit distinct mean scattering coefficients during light exposure:

Source: Henderson et al., Frontiers in Neurology, 2024, “Can infrared light really be doing what we claim it is doing? Infrared light penetration principles, practices, and limitations.”

This physical contrast creates a sharp optical signal. Fatty tissue and soft structures reflect incoming rays because they possess lower light absorption coefficients. Skin tissue scatters light significantly, so penetration decreases rapidly as depth increases. Studies of 820 nm infrared light penetration indicate that transmission decreases sharply as skin thickness increases, with virtually no detectable light reaching 3 mm in certain experimental skin models. Near-infrared technology targets this optimal upper dermal layer. You can operate a handheld unit to locate hidden structures instantly. This non-invasive vein visualization technology can generate clear visual target maps based on anatomical differences.

Source: Frontiers in Neurology, 2024

Signal Processing and Real-Time Skin Projection

Once the specialized camera captures reflected light patterns, integrated software processes visual data instantly. Near-infrared imaging operates where melanin absorption remains low, making detection effective across diverse skin tones. Reflection difference imaging calculates intensity variations between tissue reflections and hemoglobin absorption. Edge enhancement algorithms remove background noise and sharpen structural contours. Specialized depth prediction models estimate vein depth based on scattered intensity patterns. Digital processing filters incoming signals within milliseconds, ensuring immediate operational readiness.

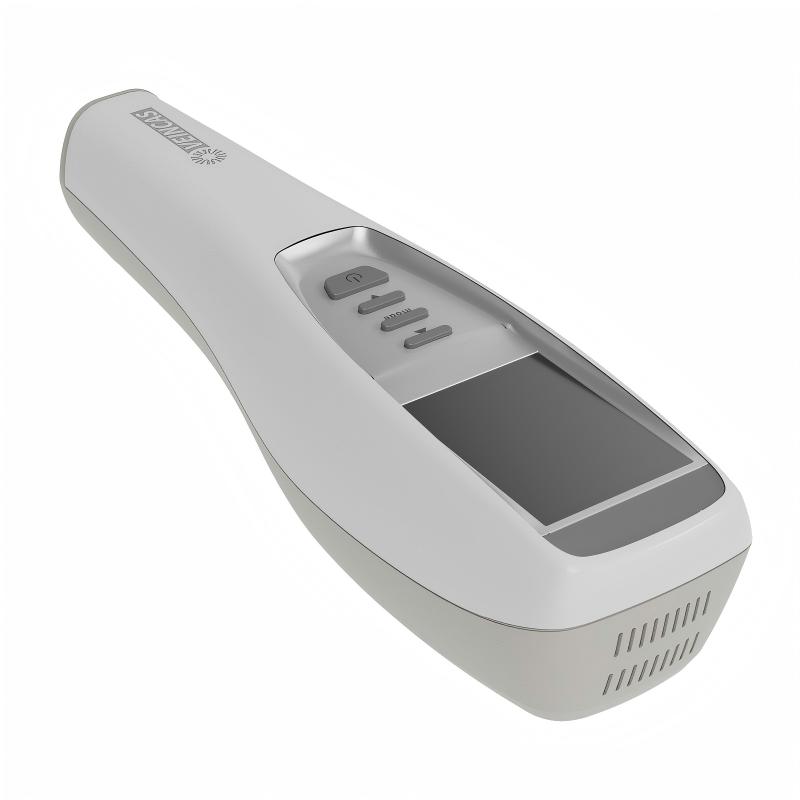

After processing the visual signal, the system displays a real-time vein projection onto the patient's skin surface. The portable infrared vein finder viewer can provide visual assistance for vascular path mapping, helping reduce reliance on experience-based judgment. A handheld system emits infrared light to highlight optimal insertion points. A modern vein viewer enhances peripheral access procedures by eliminating blind tactile attempts. This advanced vein viewer device reveals subterranean pathways with millimeter precision. Clinicians rely on a vein viewer to ensure accurate access during every phlebotomy procedure. You achieve consistent success when placing intravenous lines in challenging pediatric or adult patients.

Clinical Advantages of Vein Viewer Technology

Overcoming Complex Venipuncture Challenges

You face difficult vein access daily when patients present with swollen tissue, dark skin pigmentation, or fragile blood vessels. Modern vein visualization technology improves workflow efficiency across clinical environments. Standard tactile methods often fail on edematous or dehydrated patients because fluid obscures the target vessel. A portable vein viewer illuminates subterranean pathways clearly through surface tissue.

In patients with challenging venous access, such as pediatric, geriatric, or darker-skinned individuals, vein finders help improve visibility and procedural success.

How Vein Finder Machines Access Deep Vessels

You rely on modern vein finder machines to locate subcutaneous structures in high BMI populations. Adipose tissue creates a physical barrier that buries every peripheral vein under layers of fat. An infrared vein finder viewer projects bright visual signals directly onto human skin to guide your needle trajectory. For patients with a BMI of 30 or higher, you are approximately 3.5 times more likely to secure access on your first stick using light projection.

Source: Basadonna G. et al., University of Massachusetts Medical School, clinical study of AccuVein AV400 in obese patients.

Advanced vein finder applications boost procedural efficiency when treating patients with severe obesity. For patients with a BMI of 40 or higher, two-attempt access success rose from approximately 50% to 96%. However, you must recognize physical optical boundaries. A portable handheld unit detects subcutaneous vessels up to a maximum depth limit.

You use a portable handheld vein finder to map superficial paths up to 10 mm deep. Near-infrared light cannot penetrate beyond this physical boundary. When a deep vein lies beyond 10 mm beneath heavy adipose tissue, healthcare clinicians must choose ultrasound imaging instead. Utilizing an ideal handheld vein viewer optimizes routine iv access while establishing high standards across modern healthcare facilities.

Operational Safety and Optical Precision

Radiation-Free Surface Illumination

You can operate visual vascular devices with complete confidence in medical environments. Near-infrared light used in a modern infrared vein viewer is classified as non-ionizing radiation. A study published in J Biophotonics (2023) confirmed that near-infrared light does not damage DNA or induce mutations in human fibroblast cells. Manufacturers design these devices under strict FDA Approval guidelines and ISO 13485 quality standards. Equipment standards like IEC 60601-2-57 ensure optimal optical hazard controls during routine operations.

These devices use safe, non-invasive light. They do not touch your skin or cause pain.

Differentiating Vein and Artery Signals

An optical projection vein finder clearly reveals underlying vascular structures by capturing light absorption differences between vessels. Deoxygenated blood inside venous channels absorbs specific wavelengths while surrounding structures reflect them. You can easily spot target vein pathways through a simple visual process:

1. The device emits infrared light that penetrates the skin surface.

2. Hemoglobin in the blood absorbs this infrared light, allowing the device to detect the vascular pattern beneath the skin.

3. The captured vascular image is processed by the device's software.

4. The processed image is projected in real-time onto the patient's skin, providing a clear visual map of the veins without any skin penetration.

A portable handheld unit allows healthcare clinicians to identify optimal target vein sites instantly. This non-invasive visual map helps you avoid accidental arterial punctures, significantly reducing the risk of painful complications such as hematoma formation or extravasation during routine peripheral cannulation procedures. You achieve superior clinical precision while maintaining maximum safety standards across every department.

An infrared vein finder viewer converts subterranean vascular paths into clear visual maps through selective light absorption. You can illuminate hidden vessel pathways instantly to support operational efficiency during difficult procedures.Clinical trials have reported the following resultsIn pediatric cases, utilizing a vein viewer raised the first-attempt success rate from 47.4% to 91.7%. The average insertion attempts dropped from 2.23 down to 1.08.

Source: PubMed-indexed randomized controlled study of 129 pediatric patients. Does the Use of a Vein Visualization Device for Peripheral Venous Catheter Placement Increase Success Rate in Pediatric Patients?

Integrating an advanced projection vein finder or infrared vein viewer into healthcare workflows can reduce the risk of blind cannulation.You gain immediate guidance while securing peripheral vein access in complex patients. In a survey of facilities using near-infrared vein visualization technology, 88% of respondents reported improved patient satisfaction.

Source: Journal of Infusion Nursing, 2023.

FAQ

How Deep Can Visual Detection Devices Locate Sub-surface Pathways?

A portable vein viewer detects sub-surface vessels up to 10 mm deep. Near-infrared light penetrates upper skin layers and highlights the vessel path clearly.

Do Vein Finder Machines Pose Radiation Risks to Patients?

No. These non-invasive units use harmless near-infrared light. They emit zero ionizing radiation, so healthcare workers can safely use them during routine procedures.

How Do Optical Devices Assist During IV Line Placement?

A handheld unit projects a real-time visual map onto skin. You instantly locate ideal access points, reducing painful needle attempts for challenging patients.

Can Light Illumination Locate Deeply Buried Vessels?

Extremely deep target vessels beyond 10 mm require alternative methods like ultrasound. However, optical illumination can clearly present most superficial target vein paths.
